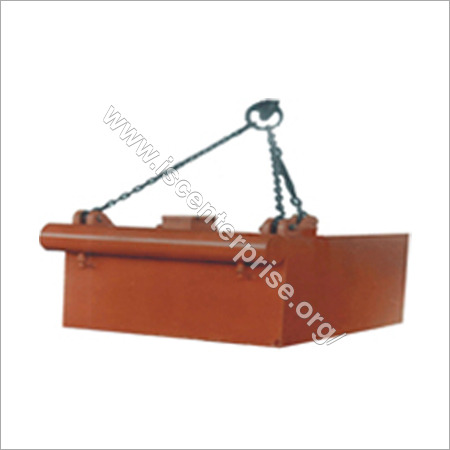

Oil Cooled Magnets

Oil Cooled Magnets
Oil Cooled Magnets
Product Code : 12
Product Description

Backed by a team of dexterous professionals, we have been able to manufacture, trade and supply a wide range of Oil Cooled Magnets. Provided with different specifications and additional instruments, these magnets are manufactured using high-grade raw material and basic components that are obtained from the reliable vendors of the industry. Easy installation, low maintenance, longer service life and robust design are some of the quality assured features of these magnets. These Oil Cooled Magnets are available at industry leading prices.

Other details:

The Oil Cooled Magnets are provided with External Oil Expansion Tank and the features has helped the prevention of Coil Burning. Heat and moisture, the greatest enemies of electromagnets, are effectively controlled by the expansion tank, which assures that the coils are always completely immersed in cooling oil,

Competitive units provide space within in the magnet housing where damaging condensation forms when moist air seeps in through the pressure relief valve as the magnet cools. The breather provide at the expansion thank traps the moisture and keeps it out of the magnet. Replaceable stainless Steel Impact Plate to Prevent damage to the magnet face.

Standard Model Sizes


Model No.

L x W x H x C

Lst. Wt. (Kgs)


DC Volts

EMS 4242

42 X 42 X 22 X 56




EMS 4848

48 X 48 X 22 X 58





54 X 54 X 22 X 62




EMS 6060

60 X 60 X 32 X 70




Other Sizes available upon request

Standard Features:

  • Class H Aluminum Coils

  • Heavy Duty Impact Plate

  • Heavy Duty 4 Point Suspension

  • Oil Expansion Tank

  • Vacuum Wound Coils

Optional Features:

  • Insulated Copper Coils

  • DC Power Supplies

  • Dust Proof Junction Box

  • Water Proof Junction Box
